• Di-Log DL6780 CombiVolt 1 Voltage and Continuity Tester

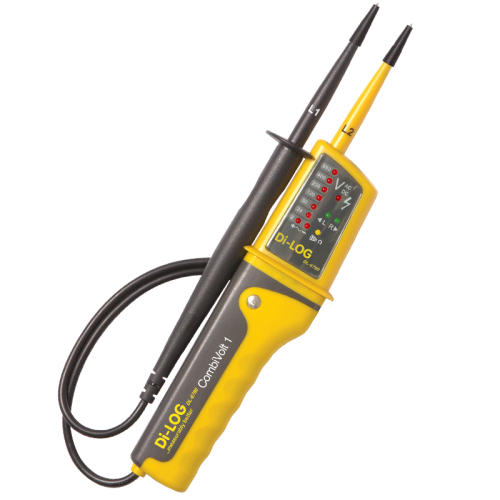

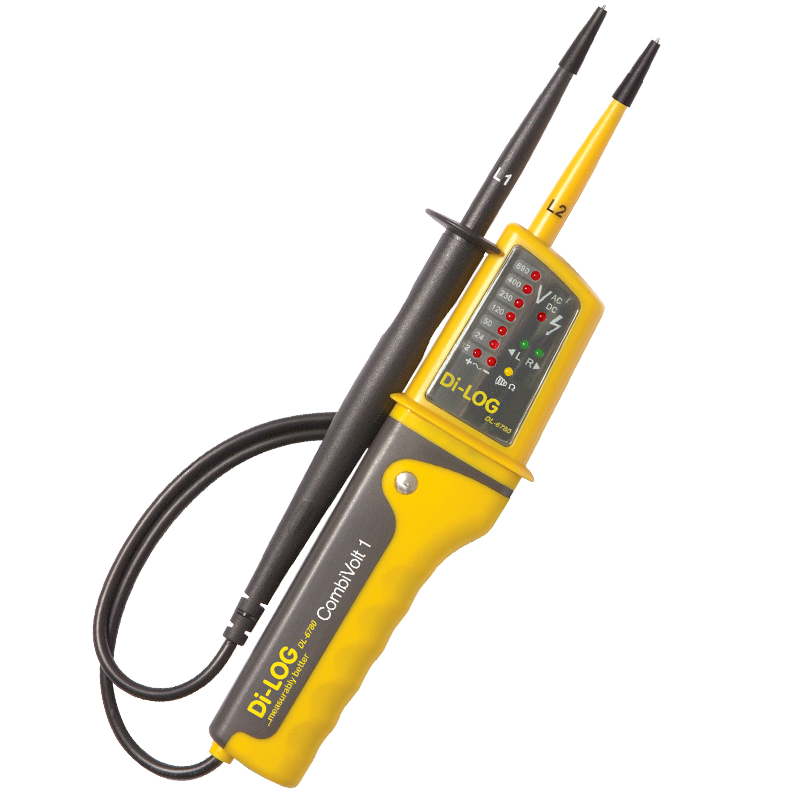

Di-Log DL6780 CombiVolt 1 Voltage and Continuity Tester

Model: DL6780

  • £77.13 inc VAT

  • £77.13 ex VAT

Please Note
All products purchased are for collection from our store in Gibraltar and do not ship directly to your location.

We ship every Thursday from the UK for delivery to our Gibraltar store and shipments take 10 days from leaving the UK (order cut off is Wednesday at midnight or your order will be on the following week's Thursday shipment).

We will call you once you order has arrived to arrange collection.

In Stock

CombiVolt™ Voltage & Continuity Testers with Phase Rotation Test

The three-in-one testers with a rugged, ergonomically formed housing for perfect handling.

Fully conformant to BS EN 61243-3:2014

Key Features

  • Testing of AC/ DC voltages from 12 to 690 V AC/DC
  • Continuity testing with optical and acoustic indication
  • Automatic switching between voltage and continuity
  • Phase rotation test system
  • Single pole phase indication
  • Fully compliant with GS38
  • Fully operational voltage indication even when batteries are discharged
  • Will not trip any RCD when testing across Live and Earth
  • Single pole detection when L2 probe connected above 100V


Voltage display12 – 690 V AC/DC
LED resolution12, 24 , 50, 120, 230, 400, 690
LCD resolutionn/a
Voltage detectionAutomatic
Acoustic signalAC voltage – DC voltage
Polarity detectionFull range
Response timeLED < 0.1s
Frequency range0 – 400 Hz
Peak currentIs < 0.3 A / Is (after 5s) < 3.5 mA
Operation time30s
Recovery time10 min
Auto power on< 12 V AC/DC
Single pole
voltage indication
Voltage range100 – 690 V AC
Frequency range50 – 400 Hz
Measuring range0 – 400 KΩ
Phase rotation test
Voltage range100 – 690 V
Frequency45 – 65 Hz
Over voltage protection690 V AC/DC g
Safety StandardsCAT IV 600V
IEC 60529 (IP65), 61243-3
EN61010-1:2010, EN61010-2-033:2010, EN61010-031:2002+A1:2008, IEC 61243-3:2009, EN61243-3:2010, EN61243-3:2014 & EN61326-1
Power supply2 x 1.5 V LR03 batteries
Dimensions255 x 70 x 28 mm
Weight200 g
